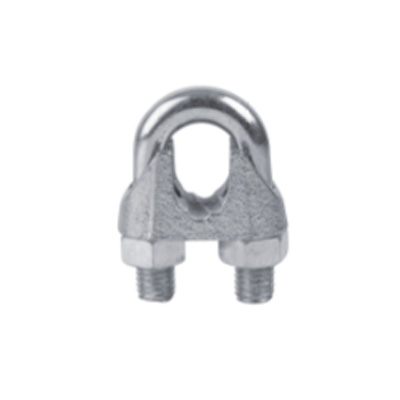

Galv.malle Able Wire Rope Clip Din 741 clip irristakorraren gaineko azalaren kontrako hariak dira, marruskadura modu eraginkorrean handitu dezaketenak.
Ren ezaugarria Galv.malle Able Wire Rope Clip Din 741
Irristakorraren kontrako hariak daude kliparen zirrikituaren gainazalean, marruskadura modu eraginkorrean areagotzeko
-Ren zehaztapenaGalv.malle Able Wire Rope Clip Din 741
| Neurria | A | B | C | D | E | F | G |
| mm | mm | mm | mm | mm | mm | mm | mm |
| 3 | 21 | 10 | 10 | 4 | 9 | 12 | 16.6 |
| 5 | 23 | 10 | 11 | 5 | 11 | 13 | 19.65 |
| 6.5 | 26 | 11 | 12 | 5 | 13 | 15 | 23.65 |
| 8 | 30 | 15 | 14 | 6 | 16 | 19 | 28.85 |
| 10 | 34 | 17 | 18 | 8 | 19 | 22 | 35 |
| 11 | 36 | 18 | 19 | 8 | 20 | 22 | 37 |
| 13 | 40 | 21 | 23 | 10 | 24 | 30 | 46.24 |
| 14 | 44 | 22 | 23 | 10 | 25 | 30 | 48.24 |
| 16 | 50 | 26 | 26 | 12 | 29 | 33 | 52.5 |
| 19 | 54 | 30 | 29 | 12 | 32 | 38 | 64.5 |
| 22 | 61 | 34 | 33 | 14 | 37 | 44 | 72.5 |
| 26 | 65 | 37 | 35 | 14 | 41 | 45 | 82.5 |
| 30 | 74 | 43 | 37 | 16 | 48 | 50 | 95.6 |
| 34 | 80 | 50 | 42 | 16 | 52 | 55 | 105.6 |
| 40 | 88 | 55 | 45 | 16 | 58 | 60 | 125.6 |
