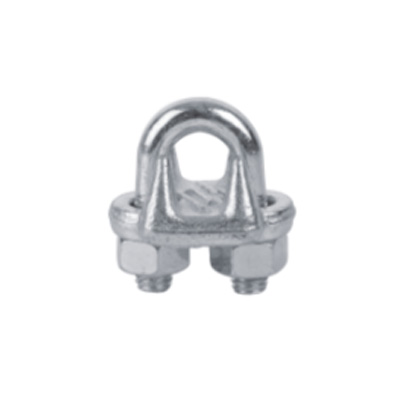

US Type Drop Forged Wire Rope Clips kliparen zirrikituaren gainazaleko irristakorraren kontrako hariak dira, marruskadura modu eraginkorrean handitu dezaketenak.
Ren ezaugarriaAEBetako Mota Forjatutako Alanbre Sokako Klipak
Irristakorraren kontrako hariak daude kliparen zirrikituaren gainazalean, marruskadura modu eraginkorrean areagotzeko
-Ren zehaztapenaAEBetako Mota Forjatutako Alanbre Sokako Klipak
| Neurria | A | B | C | D | E | F |
| mm | mm | mm | mm | mm | mm | mm |
| 1/8 | 7/32 | 0.72 | 0.44 | 0.47 | 0.94 | 0.81 |
| 3/16 | 1/4 | 0.97 | 0.56 | 0.59 | 1.16 | 0.94 |
| 1/4 | 5/16 | 1.03 | 0.63 | 0.75 | 1.44 | 1.19 |
| 5/16 | 3/8 | 1.38 | 0.75 | 0.88 | 1.69 | 1.31 |
| 3/8 | 7/16 | 1.5 | 0.75 | 1 | 1.94 | 1.63 |
| 7/16 | 1/2 | 1.88 | 1 | 1.19 | 2.28 | 1.81 |
| 1/2 | 1/2 | 1.88 | 1 | 1.91 | 2.28 | 1.91 |
| 9/16 | 9/16 | 2.25 | 1.25 | 1.31 | 2.5 | 2.06 |
| 5/8 | 9/16 | 2.38 | 1.25 | 1.31 | 2.5 | 2.06 |
| 3/4 | 5/8 | 2.75 | 1.44 | 1.5 | 2.84 | 2.25 |
| 7/8 | 3/4 | 3.13 | 1.63 | 1.75 | 3.16 | 2.44 |
| 1 | 3/4 | 3.5 | 1.81 | 1.88 | 3.47 | 2.63 |
| 1-1 / 8 | 3/4 | 3.88 | 2 | 2 | 3.59 | 2.81 |
| 1-1 / 4 | 7/8 | 4.25 | 2.13 | 2.31 | 4.13 | 3.13 |
| 1-1 / 8 | 7/8 | 4.63 | 2.31 | 2.38 | 4.19 | 3.13 |
| 1-1 / 2 | 7/8 | 4.94 | 2.38 | 2.59 | 4.44 | 3.41 |
| 1-1 / 8 | 1 | 5.31 | 2.63 | 2.75 | 4.75 | 3.63 |
| 1-3 / 4 | 1-1 / 8 | 5.75 | 2.75 | 3.06 | 5.28 | 3.81 |
| 2 | 1-1 / 4 | 6.44 | 3 | 3.38 | 5.88 | 4.44 |
| 2-1 / 4 | 1-1 / 4 | 7.13 | 3.19 | 3.38 | 6.38 | 4.65 |
